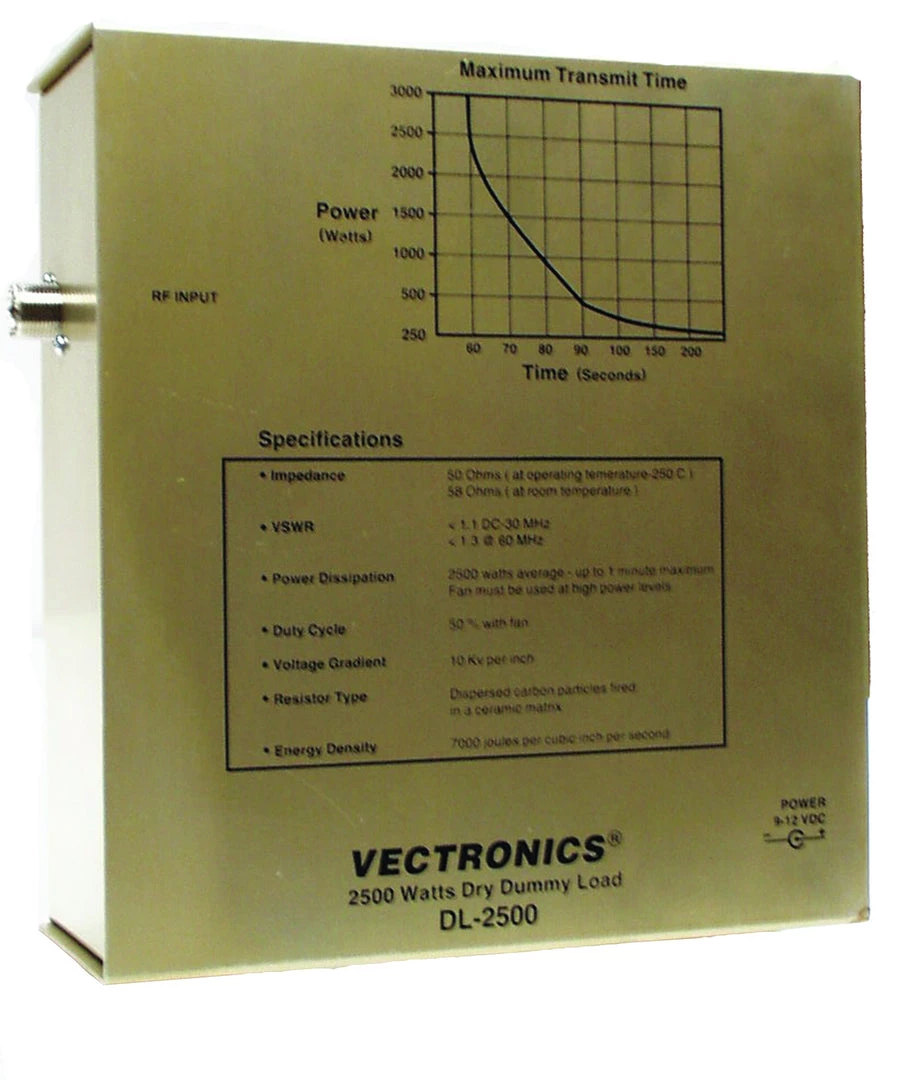

Vectronics DL-2500, IT, DUMMY LOAD, 2500W, 0-150MHz, FAN COOLED

Fan cooled DL-2500 Dummy Load simulates an accurate 50 Ohm antenna up to 60 MHz, enabling you to test your transmitter without radiating a signal on the air. 115 VAC to 12 VDC adaptor is included.
Specifications:
DC to 60 MHz.
Handles short-term RF power up to 2500 Watts.
VSWR of less than 1.3:1 at 30 MHz.
Power dissipation: 2500 Watts average up to one minute maximum.
Fan must be used at high power levels.
Duty Cycle: 10% with fan.
Voltage Gradient: 10 kV per inch.
Resistor type: Dispersed carbon particles fired in a ceramic matrix.
Energy Density: 7000 joules/inch/second.
Weight: 5 lbs.
