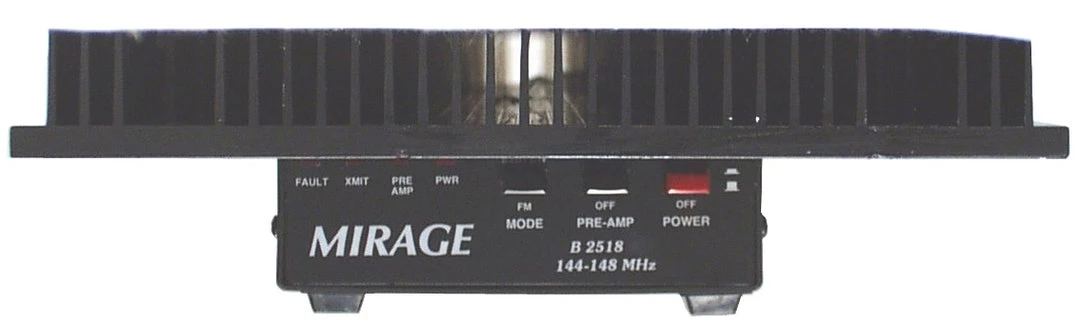

Mirage B-2518-R, VHF R.AMP,10-12W IN-120W OUT,145-148 MHz

11 models to choose from – continuous duty all mode FM/SSB/CW repeater amplifiers for 6, 2, 220 MHz, 450 MHz, and ATV service.

50, 144 and 220 MHz Models

FEATURES:

Cool Running – A10” high by 19” wide full finned rack-mounted heatsink keeps the transistor temperatures low for long life. Chassis cover is perforated so air convection will keep the circuit board area cool.

Dual Protection – The amplifiers have two temperature sensors; one on the heatsink and one on the circuit board. If conditions cause either to overheat, the amplifier will shut off until it cools down to a safe temperature.

Bypass Mode – These models will feed the exciter output straight through to the antenna in an over-temperature condition. The bypass mode can also be remotely selected by proper interfacing to the repeater controller. Either a relay contact or a TTLlogic can be used to select the bypass mode or amplified mode of operation.

Reduced Relay Wear – The amps have a selectable long release time (adjustable up to 5 seconds) for the RF change-over relay. This prevents unnecessary action during repeater operation.

On-site Control – The bypass mode and relay release time can be selected with built-in switches. The operational MIRAGE RC-1 remote control box can be used to switch these functions up to 18 feet away from the amplifier.

Warranty – Mirage repeater amplifiers are guaranteed for one year against failure due to defective workmanship or materials.

Specifications: Input Power Range: .25-3. I (MAX) at 13.8 Volts: 20. Weight in Pounds: 12. Size WxHxD inches: 10×19 Heatsync. PreAmp Gain: No. Typical Power Out for Watts In: .25: 15. 0.5: 30. 1: 60. 2: 100. 3: 130.

MIRAGE Repeater Amplifier Specifications
Model	Input Power	Max Output Power	MHz
A-1015-R	.25 – 5 W	98 W	50 – 52 MHz
B-1018-R	.25 – 3 W	130 W	145 – 148 MHz
B-2518-R	.5 – 10 W	111 W	145 – 148 MHz
C-211-R	.25 – .5 W	80 W	223 – 225 MHz
C-1012-R	.25 – 6 W	96 W	223 – 225 MHz
C-2512-R	.05 – 15 W	90 W	223 – 225 MHz
D-1010-NR	.25 – 4 W	80 W	440 – 450 MHz
D-3010-NR	1 – 15 W	75 W	440 – 450 MHz
D-100ATV-NR	.25 – 1 W	52 W	440 – 450 MHz
D-1010ATV-NR	.25 – 4 W	80 W	420 – 450 MHz
