MFJ-4713, HF 4-Position Remote Antenna Switch, 1.8-30MHz

MFJ 4-Position Remote

Antenna Switch

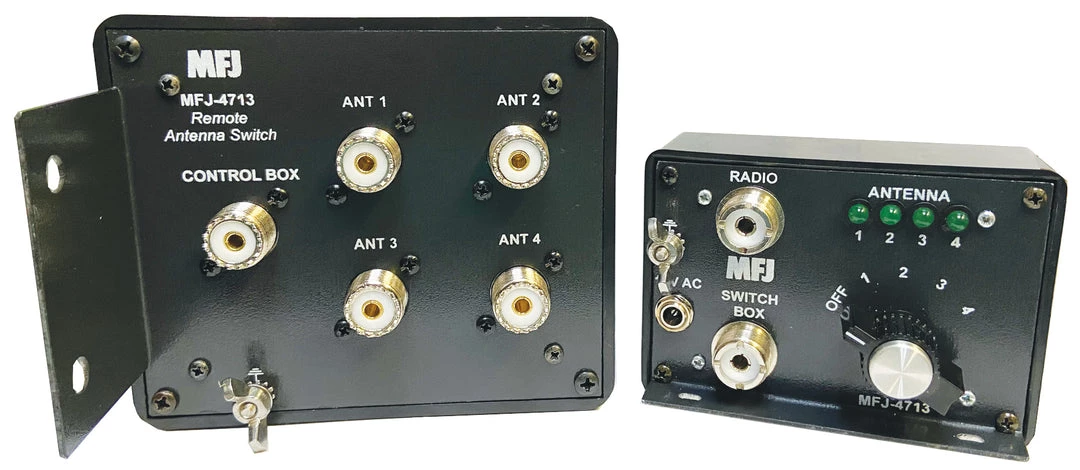

This MFJ-4713 HF 4-Position Remote Antenna Switch lets you switch between
four antennas remotely. Covers 1.8 to 30 MHz.

Run one coax from the indoor switch box to your outdoor control box on
your mast or tower or where ever your antennas are located.

Then just hook up a coax patch cable from the indoor switch box to your
transceiver. Green LEDs show you which of the four antennas you have
selected.

Handy mounting holes are on both units.  Quality SO-239 connectors, ground
lugs.

The outdoor control box is 5Wx4.25Hx1.75D inches. The metal mounting plate
protruding from the cabinet is 2 inches by 2.75 inches.

The indoor switch box is 3.75Wx2.75Hx1.5D inches. It’s mounting lip
protruding from the cabinet is just .25 inches by 3.75 inches.  Off
position.

Use 12 VAC with included 407-1072 wall adapter.
