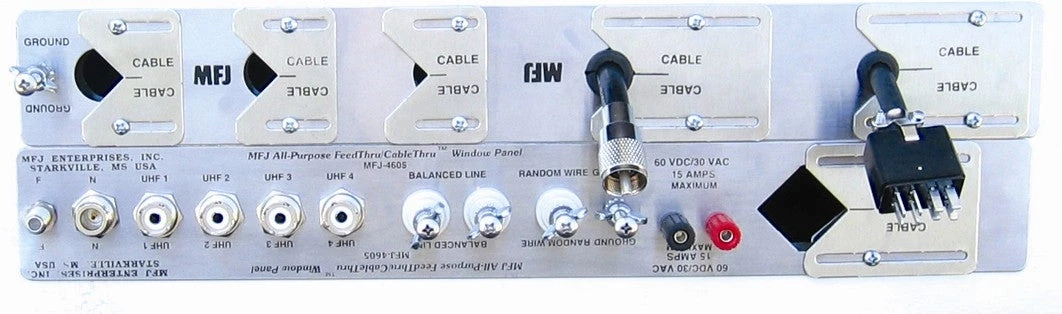

MFJ-4605, WINDOW FEED-THRU/CABLE-THRU, ALL PURPOSE

MFJ Antenna Window Feedthrough Panels

Weather-proof window feedthrough panels bring HF/VHF/UHF antennas, balanced lines, random wire antennas, ground, DC/AC power and Rotator/Antenna Switch Cables into your hamshack without drilling through walls.

MFJ Weather-Proof Antenna Feedthrough Panels mounts in your window sill. They let you bring all your antenna connections into your hamshack without drilling holes through walls.

Real Western Red Cedar wood is naturally resistant to rot, decay and insects — lasts longer, maintenance-free. Pitch and resin free for a wide range of beautiful finishes or leave it in its naturally beautiful raw finish.

Simply place in window sill and close window. Edges sealed by weather-stripping. Seals and insulates against all weather conditions. Gives years of trouble-free service. All are ¾” x 3 ½” x 48″ , except for MFJ-4605, which          is ¾” x 7″ x 48″ . Inside/outside stainless steel plates bond all coax shields together to ground connection. Stainless steel ground post brings outside ground connection inside.

Six Models to choose from MFJ-4601 – For coax fed antennas. – The MFJ-4601 has six high quality Teflon® SO-239 connectors for HF/VHF/UHF coax fed antennas and a stainless steel ground post. Handles full 1500 Watt legal limit.

MFJ-4600

MFJ-4601

MFJ-4602

MFJ-4603

MFJ-4604

MFJ-4605
