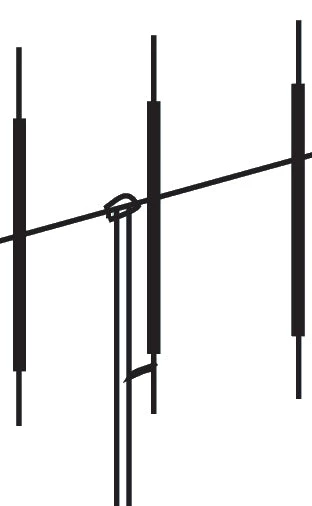

The Hygain LJ-113 is a three element 10/12 Meter beam antenna designed to give maximum performance. It is similar to the larger LJ-115 It has an amazing forward gain of 8.2 dB and a great front-to-back ratio of 20 dB. LJ-113 is constructed of the best quality aluminum tubing and uses a new swaged (tapered) design for maximum strength and lightest weight. It boasts an 80 MPH wind survivability. This powerful beam features HyGains exclusive Beta-Match system which matches the antenna to a 50 Ohm feedline and puts the driven element at DC ground for noise-free operation and lightning protection. LJ-113 is easily rotated with a Hygain rotator for 360 degree coverage. See popular Hygain models AR-40 and CD-45II. Feed this antenna with any standard 52 Ohm coaxial cable. Expect a 1.05:1 SWR at resonance if the antenna is mounted in the clear and care is taken in attaching the feedline. The SWR will remain below 1.5:1 over the entire 10 Meter frequency range.
|Foward Gain||9.7 dB||8.2 dB|
|Power Multiplication Factor||9.3||6.6|
|Front-to-Back Ratio||25 dB||20 dB|
|Coaxial Feedline||52 Ohms||52 Ohms|
|Boom Length||18 feet||8 feet|
|Longest Element||18 feet||18 feet|
|Mast Diameter||15⁄8 inches||1¼ to 15⁄8 inches|
|Maximum Wind Survival||80 MPH||80 MPH|
|Net Weight||18.9 lbs.||6.8 lbs.|
Download Product Manual
