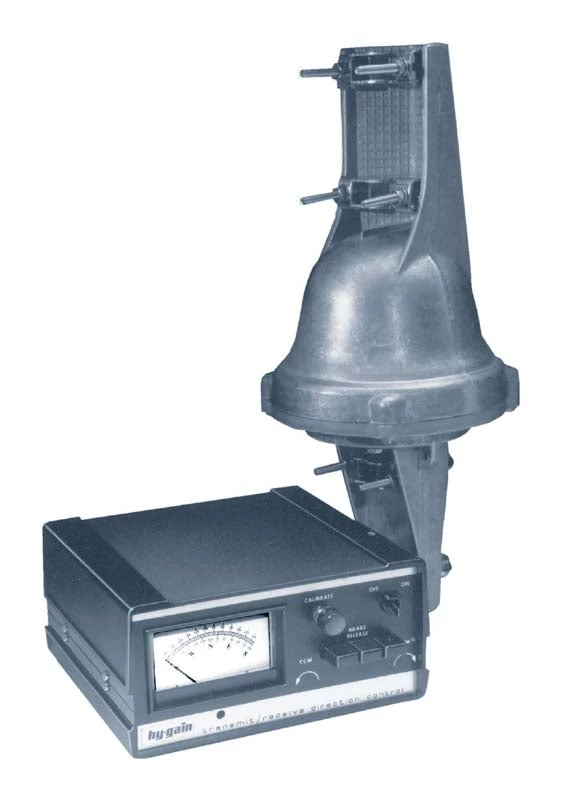

The CD-45IIX handles 8.5 sq. feet mounted inside a tower, or 5 sq. ft. with mast adapter. Low temperature grease good to -30 F degrees. Bell rotator design gives total weather protection, dual 58 ball bearing race gives proven support.
Die cast ring gear, stamped steel gear drive, heavy duty, trouble free gear train. North center scale, lighted directional indicator, 8-pin plug/socket on control unit, snap-action control switches. Low voltage control. Safe operation, takes masts to 2 1/16. MSLD light duty lower mast support. Operates at 220V.
|CD-45IIX Rotator Specifications|
|Wind Load Capacity (inside tower)||8.5 square feet|
|Wind Load Capacity (with mast adapter)||5.0 square feet|
|Turning Power||600 pounds|
|Brake Power||800 pounds|
|Brake Construction||Disc Brake|
|Bearing Assembly||Dual race/48 ball bearings|
|Mounting Hardware||Plate clamps/Steel U-Bolts|
|Control Cable Conductors||8|
|Shipping Weight||22 pounds|
|Effective Moment (in tower)||1200 ft/lbs.|
Download Product Manual
