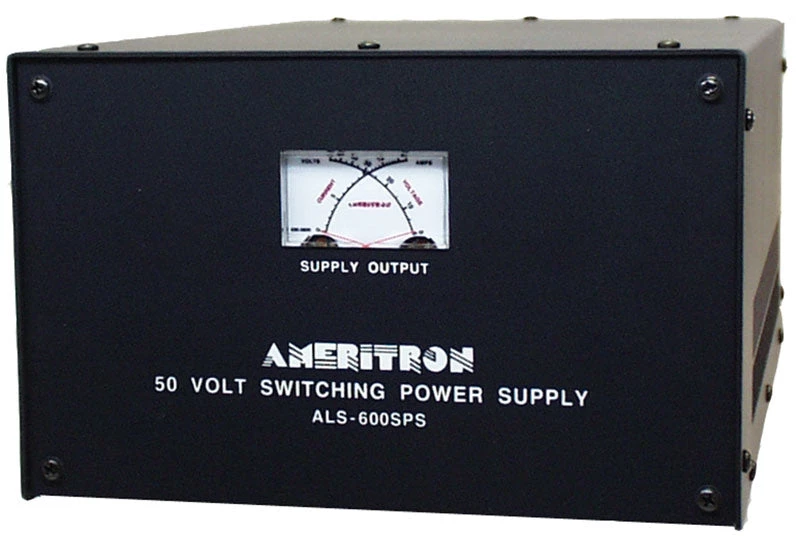

Ameritron ALS-600SPS, SWITCHING POWER SUPPLY, ALS-600/606

The ALS-600SPS is a light weight switching power supply to use with the ALS-600 amplifier. The switching supply weighs 3 times less than the choke type power supply. The specially designed switching and filter circuit makes this power supply hash free.

The ALS-600SPS has a terminal strip where the AC voltage can be 120 or 240 50/60 Hz. The power supply will safely operate from 90-130 Vac in the 120 Vac position and 185-260 in the 240 Vac position.

• Line Input: 120/240 AC 50/60 Hz
• Output: 50 Vdc 25 Amps +- 14 Vdc 1 Amp.
• Metering: Cross Needle Volts / Amp.
• Output Cable: Beau multi-connector with 6 foot cord to mate the ALS-600 amplifier
• AC line: NEMA 5-15P connector
• Dimensions: 9″ x 6″ x 14″
• Operating Weight: 10 lbs.

ALS-600 Variants
Base Model w/ 50V Power Supply – ALS-600	Base Model w/ Switching Power Supply – ALS-600S
220V Export Model w/ 50V Power Supply – ALS-600X	220V Export Model w/ Switching Power Supply – ALS-600SX
110V Export Model w/ 50V Power Supply – ALS-600Y	Switching Power Supply Only (No Amp) – ALS-600SPS
