Same as an ALS-600 but without the power supply.
Must Purchase the ALS-600PS separately.

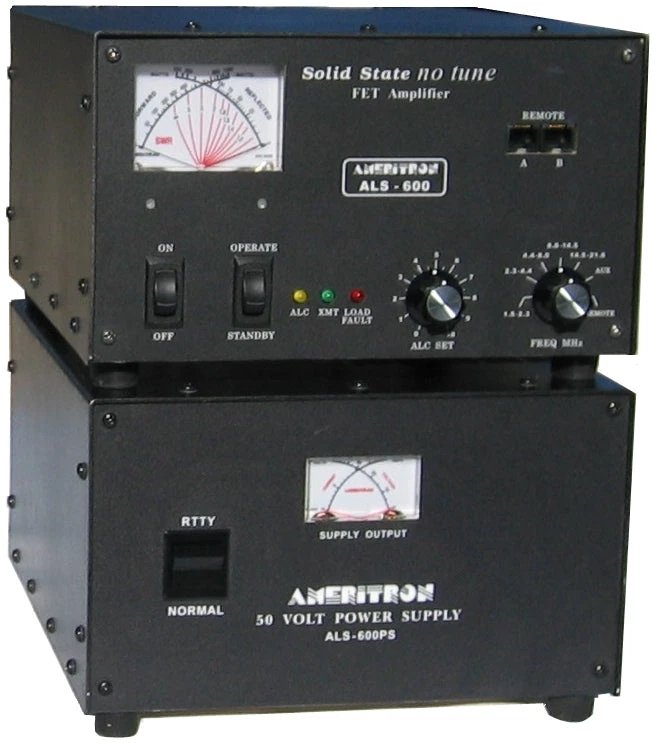

–Ameritrons revolutionary ALS-600 is amateur radios ONLY linear amplifier that uses four rugged TMOS RF power FETs – gives unequaled no tune solid state performance.
–Includes Ameritrons no tune FET Amplifier.
–Instant bandswitching, no tuning, no warm up –Output Power – 600 Watts PEP, 500 Watts CW
–Continuous Coverage – 1.5 to 22 MHz; 10/12 Meters with easy-to-install optional kit, $29.95 plus s/h
–SWR Protection – prevents amplifier damage if you switch to wrong band, use wrong antenna or have high SWR
–Over Power Protection – if output forward power or reflected power exceeds safe level, output power is automatically reduced to prevent amplifier damage by controlling ALC to exciter.
–Extremely quiet – low speed, low volume fan is so quiet youll hardly know its there, unlike noisy blowers used in other amps.
–Very Compact – 6 x 9 1/2 x 12 inch amplifier takes up less desktop space than your transceiver and weighs 12 1/2 pounds.
–Illuminated Cross-Needle SWR/Wattmeter – lets you read SWR, forward and reflected peak power simultaneously
–Operate/Standby Switch – lets you run “barefoot”, but you can instantly switch to full power if you need it.
–Front Panel ALC Control – exclusive Ameritron feature – convenient front panel control lets you adjust your output power.
–Transmit, ALC SWR LED indicators – keeps you informed.
–12 VDC output jack – lets you power low current accessories.
–Massive choke input filter greatly improves voltage regulations nd reduces peak AC line current.
–Ameritrons exclusive Multi-Voltage Power Transformer lets you compensate for stressful high line voltage and performance robbing low line voltage.
–Step Start Inrush Protection stops damaging inrush currents and extends life of power supply components.
–Illuminated Cross-Needle Meter monitors voltage and current of 50 VDC line.
–Extremely quiet fan.
–Very Compact 6″ x 9 ½” x 12″ – can be placed conveniently out-of-way.
–Wired for 120 VAC, supplies 50 VDC at 25 amps to ALS-600 amplifier.
–Also use on 100-130 VAC and 220-250 VAC, 50/60 Hz.
–Draws less than 12 amps at 100 VAC and less than 6 amps at 230 VAC.
Made in the USA
|Base Model w/ 50V Power Supply – ALS-600||Base Model w/ Switching Power Supply – ALS-600S|
|220V Export Model w/ 50V Power Supply – ALS-600X||220V Export Model w/ Switching Power Supply – ALS-600SX|
|110V Export Model w/ 50V Power Supply – ALS-600Y||Switching Power Supply Only (No Amp) – ALS-600SPS|
Download Product Manual
